Product Introduction

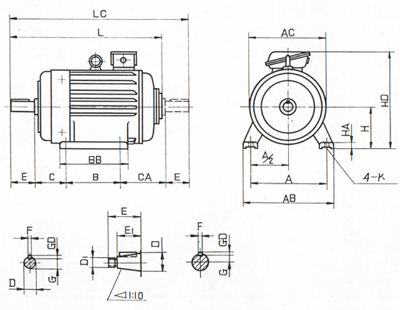

2.IM1001、IM1003 and IM1002、IM1004 Horizontal Foot-Mounted Motor Without Flange YZ112-250

2.IM1001、IM1003 and IM1002、IM1004 Horizontal Foot-Mounted Motor Without Flange YZ112-250

Frame	Mounting Dimension & Tolerance																														Overall Dimension
	H		A		A/2		B		Difference of B on two sides	C		Difference of C on two sides	CA	K		Dia. Of screw	D		D1	E		E1	Key				key way				AC	AB	HD	BB	L	LC	HA
	Dimension	Tolerance	Dimension	Tolerance	Dimension	Tolerance	Dimension	Tolerance		Dimension	Tolerance			Dimension	Tolerance		Dimension	Tolerance		Dimension	Tolerance		F(h9)		GD		F(h9)		G
																							Dimension	Tolerance	Dimension	Tolerance	Dimension	Tolerance	尺寸	Tolerance
112M	112	0 -0.5	190	±0.70	95	±0.50	140	±0.70	0.70	70	±2.0	0.30	135	12	+0.43 0	M10	32	+0.018 +0.002	–	80	±0.37	﹣	10	0 -0.036	8	0 -0.09	10	0 -0.036	27	0 -0.2	245	250	330	235	400	505	15
132M	132		216		108		178			89			150				38												33		285	275	360	260	495	577	17
160M	160		254	±1.05	127	±0.75	210	±1.05	1.05	108	±3.0	0.45	180	15		M12	48			110	±0.43		14	0 -0.043	9		14	0 -0.043	42.5		325	320	420	290	608	718	20
160L							254																											335	650	762
180L	180		279		139.5		279			121							55		M36×3			82							19.9		360	360	460	380	685	800	22
200L	200		318		159		305			133			210	19	+0.52 0	M16	60		M42×3	140	±0.50	105	16		10		16		21.4		405	405	510	400	780	928	25
225M	225		356		178		311			149			258				65												23.9		430	455	545	410	850	998	28
250M	250		406	±1.40	203	±1.0	349	±1.40	1.40	168	±4.0	0.60	295	24		M20	70		M48×3				18		11	0 -0.11	18		25.4		480	515	605	510	935	1092	30
