Product Introduction

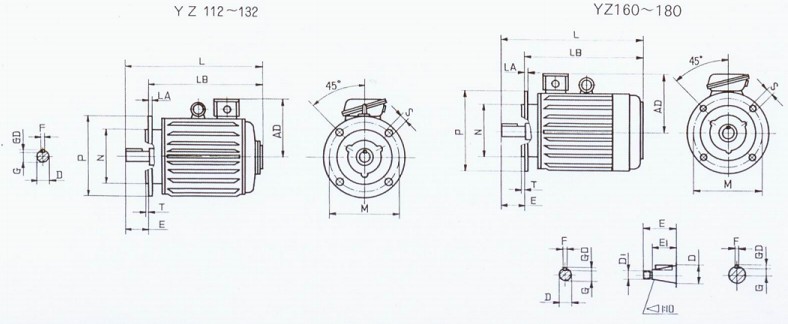

4.IM3001 and IM3003 Horizontal Flange-Mounted Motor Without Foot YZ112-180

4.IM3001 and IM3003 Horizontal Flange-Mounted Motor Without Foot YZ112-180

Frame	Mounting Dimension & Tolerance																									Overall Dimension
	Flange symbol	M	N		P	LA	T	S		Screw		D		D1	E		E1	Key				key way				L	LB	AD
			Dimension	Tolerance				Dimension	Tolerance	Diamesion	Amount	Dimension	Tolerance		Dimension	Tolerance		F(h9)		GD		F(N9)		G
																		Dimension	Tolerance	Dimension	Tolerance	Dimension	Tolerance	Dimension	Tolerance
112M	F215	215	180	+0.014 -0.011	250	14	4	15	+0.43 0	M12	4	32	+0.018 +0.002	-	80	±0.37	-	10	0 -0.036	8	0 -0.09	10	0 -0.036	27	0 -0.2	430	350	220
132M	F265	265	230	+0.016 -0.013	300							38												33		495	415	230
160M	F300	300	250		350	18	5	19	+0.52 0	M16		48			110	±0.43		14	0 -0.043	9		14	0 -0.043	42.5		700	590	250
160L																										743	633
180L												55		M36×3			82							19.9		735	625	280
