Dismantling

1、For dismantling method of YZR motor, see Diagram 1 for reference.
2、Take out shaft extension flat key (2).
3、Screw out hood (4)’s fixation screw (8), and take down the hood.
4、Dismantle retaining ring (3) from the shaft and take down fan (5).
5、Screw out front shaft cover (6)'s fixation screw (1).
6、Open inspection window's cover plate (15), screw out bolt (18), and dismantle brush apparatus (16).
7、Screw out rear end cover (17) (in the Diagram 2, bolt (14) is on (15)).
8、Knock the shaft head A with wooden hammer so that the front shaft leaves the bearing chamber.
9、When rotor (10) is lift out of stator (11) in the rear end cover and frame gap with rope, aforesaid steps can be referred and reverse steps can be made to conduct assembly.
10、See Diagram 2 for dismantling method of YZ motor.
Dismantling method of YZ motor is identical with that of YZR motor in exception of provision of (5.1.5).

Typical assembly diagram of YZE motor

diagram(1)

Table 14

1

Bolt

9

Front shaft inner cover

17

Rear Cover

2

Flat key

10

Rotator

18

Bolt

3

Retaining ring

11

Stator

19

The rear bearing cover

4

Hood

12

Eyebolt

20

After bearing

5

Fan

13

Lead box

21

Dust removing manhole covers

6

Front shaft outside cover

14

Bolt

22

Bolt

7

Front end cover

15

Inspection window cover plate

8

Screws

16

Brush apparatus

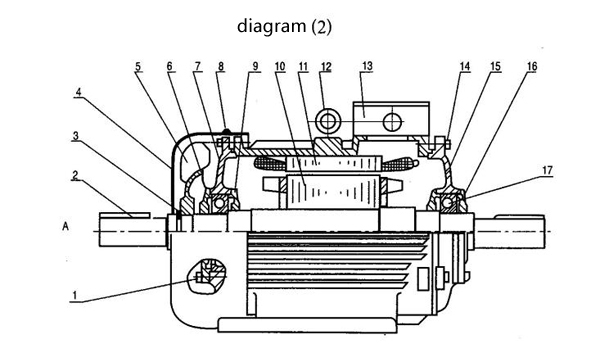

Typical assembly diagram of YZ motor

Table 15

1

Bolt

7

Front end cover

13

Lead box

2

Flat key

8

Screws

14

Bolt

3

Retaining ring

9

Front shaft inner cover

15

Rear Cover

4

Hood

10

Rotator

16

The rear bearing cover

5

Fan

11

Stator

17

After bearing

6

Front shaft outside cover

12

Eyebolt
